IAT sensor relocation mod
Topic Started: Oct 11 2006, 10:18 PM (3,304 Views)
Alta Boy
Member Avatar
Quad Squad site owner

Relocating your "intake air temp" sensor (IAT sensor) will help in the performance aspect of your Quadcab. This is a very cheap modifiaction to do. Total cost is going to be one 1/4" NPT plug, some teflon tape and some wire.

Your IAT sensor measures the temp of the incoming air into the manifold runner and adjusts the air/fuel mixture accordingly. By relocating the IAT off of the hot engine and to some place cooler on the air intake system it will enrich the air/fuel mixture and give better performance out of your magnum engine.

This is the IAT sensor: On the 3.9, 5.2 and 5.9 it is located on the passenger side of the engine.

Posted Image

Unscrew it from the manifold and then wrap your 1/4" NPT pipe thread plug with a few wraps of teflon tape and screw it into the hole to reseal it. My truck has a CAI ( cold air intake) but this mod can also be done to a Quadcab with a stock airbox as well. The airbox will just have to be drilled and tapped for a 1/4" NPT thread. You will probably need to extend the wires for a stock airbox application.

Pic of my relocated IAT sensor on the CAI tube.

Posted Image

I'll get a pic posted up of where the IAT is located on my 4.7 4x4 and post it up here soon.
Peter

Posted Image
Sully..............................................The 4x4
Offline Profile Quote Post Goto Top

QUAD DAD
Member Avatar


OK, I'm ready for that picture. :)
Dave

2002 4.7 QC Sport Plus 4X4

Some of my mods are Gibson dual sport exhaust, H.O. cams and intake, ARE lid w/spoiler, Street Scene grille inserts, euro clear headlights w/clear markers, Transgo reprogramming kit, chrome wheels, Power Slot Cryo rotors & Hawk pads, cowl hood with custom underliner, and lots of chrome, billet and paint under the hood.


Quad Squad Member
Offline Profile Quote Post Goto Top

QUAD DAD
Member Avatar


Still waiting. lol :)
Dave

2002 4.7 QC Sport Plus 4X4

Some of my mods are Gibson dual sport exhaust, H.O. cams and intake, ARE lid w/spoiler, Street Scene grille inserts, euro clear headlights w/clear markers, Transgo reprogramming kit, chrome wheels, Power Slot Cryo rotors & Hawk pads, cowl hood with custom underliner, and lots of chrome, billet and paint under the hood.


Quad Squad Member
Offline Profile Quote Post Goto Top

saxnbass
Member Avatar
Post whore
[ *  *  *  *  *  *  *  *  *  * ]
Me want the picture too :D
Eric

Real convo with my friend:
Me:"You don't slam trucks" (slam as in lowering to the max)(I don't like slamed trucks)
Friend:"You do some trucks"
Me:"Name me on truck you slam"
Friend:"A Ford Ranger"
Me:"Yeah, you slam a Ranger.......into a brick wall"

Posted Image
Offline Profile Quote Post Goto Top

Jeff-g-wizz
Member Avatar
Advanced Member
[ *  *  * ]
Alta,

By help in the performance aspect of your Quadcab do you mean power or economy or both?

Thanks for posting your homebrews!

Jeff
Offline Profile Quote Post Goto Top

saxnbass
Member Avatar
Post whore
[ *  *  *  *  *  *  *  *  *  * ]
Jeff-g-wizz
Oct 12 2006, 05:40 PM
Alta,

By help in the performance aspect of your Quadcab do you mean power or economy or both?

Thanks for posting your homebrews

+1
Eric

Real convo with my friend:
Me:"You don't slam trucks" (slam as in lowering to the max)(I don't like slamed trucks)
Friend:"You do some trucks"
Me:"Name me on truck you slam"
Friend:"A Ford Ranger"
Me:"Yeah, you slam a Ranger.......into a brick wall"

Posted Image
Offline Profile Quote Post Goto Top

Alta Boy
Member Avatar
Quad Squad site owner

It's going to help in the power aspect of things. A cold engine needs an air/fuel mixture that has a bit more fuel than a warm engine. By moving the IAT sensor your giving the sensor a more accurate reading of the incoming air temp and it's not getting mislead by the heat of the engine. It will not help in the economy of your Quad.

It's an additional mod that goes hand in hand with the same principle as a CAI. Your pulling air from a spot where the air is colder and not heated by the engine compartment.

Keep in mind that any horsepower gains from this mod will be minimal. However, if this mod is done and other mods are done seperately like a CAI, exhaust, etc., pretty soon the gains start to add up.

PS: I have a few mods on Sully's V6 and it's a much faster truck than my 4x4 with the 4.7
Peter

Posted Image
Sully..............................................The 4x4
Offline Profile Quote Post Goto Top

Alta Boy
Member Avatar
Quad Squad site owner

OK, finally got off my ass and took a pic of the 4.7 IAT on my 4x4's 4.7. It's located on the 3rd intake runner back from the rad on the driver's side. Can't miss it because just like the IAT on the 3.9. 5.2 and 5.9 it has the brass fitting.

Posted Image
Peter

Posted Image
Sully..............................................The 4x4
Offline Profile Quote Post Goto Top

acornish
Member Avatar
Advanced senior member
[ *  *  *  *  *  * ]
good to know pete u should put this in diy i think
Posted Image


Gus
2004 Quad Cab Sport 4X4
Patriot Blue w/4.7 magnum
http://www.cardomain.com/ride/2644870/1
<a href='http://eapr-1/@3@2004@4@sport@5@4x4@6@4.7%20HO%20Magnum%20V8@' target='_blank'></a>
Offline Profile Quote Post Goto Top

RedneckInTheGhetto
Member Avatar
I,M PART OF THE PROBLEM
[ *  *  * ]
Hey alta,
I do not know if you adressed this elsewhere but my 02 4.7 has a diferent IAT sensor setup. Instead of a brass fitting it has just a plastic twist lock contraption, is this common? I would like to do this mod but I do not see how without leaving my old IAT sensor in place to plug the hole and buying a new threaded one and puting it in my intake tube. And that is assuming the wiring connectiors would match up.

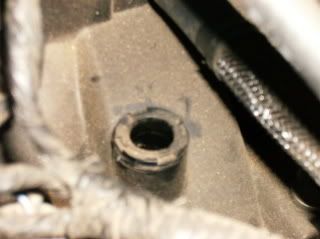

heres some pics to give you an idea:

Posted Image

Posted Image

if none of you know about this maybe i will try my above idea and post it on this thread. also opinions about whether it would be worth the effort would be appreciated.
Cameron
Security: Viper alarm that pages me when it goes off, water-filled softball bat sitting outside my bedroom door (NOTE: I love my Dakota more than I love my freedom I WILL go to jail for assault. Period! Exclamation Point.) <a href='http://eapr-1/@3@2002@4@SPORT@5@4X4@6@4.7@' target='_blank'></a>
Offline Profile Quote Post Goto Top

RedneckInTheGhetto
Member Avatar
I,M PART OF THE PROBLEM
[ *  *  * ]
I did a little research at partsamerica.com

2000 4.7l IAT sensor $57.00 and looks like this:
Posted Image

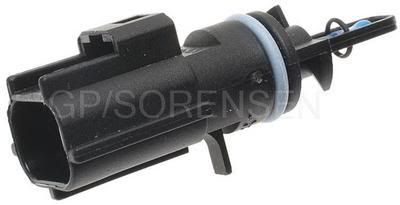

my 2002 4.7l IAT sensor $15.00 and looks like this:
Posted Image

i think this mod is out for me right now:
Cameron
Security: Viper alarm that pages me when it goes off, water-filled softball bat sitting outside my bedroom door (NOTE: I love my Dakota more than I love my freedom I WILL go to jail for assault. Period! Exclamation Point.) <a href='http://eapr-1/@3@2002@4@SPORT@5@4X4@6@4.7@' target='_blank'></a>
Offline Profile Quote Post Goto Top

E.J.
Member Avatar
Advanced senior member
[ *  *  *  *  *  * ]
why don't you try what you were talking about? if the wires are the same, leave the old one where it is and just relocate the other.
Posted ImagePosted Image
Offline Profile Quote Post Goto Top

RedneckInTheGhetto
Member Avatar
I,M PART OF THE PROBLEM
[ *  *  * ]
Because it is $60 for a minimal gain, and I have to buy books this week for college
but if I do this mod in the future I will post pics and everything on this thread. I am living on my own making $16 an hour and going to college I have to be careful of every cent. :) :)
Cameron
Security: Viper alarm that pages me when it goes off, water-filled softball bat sitting outside my bedroom door (NOTE: I love my Dakota more than I love my freedom I WILL go to jail for assault. Period! Exclamation Point.) <a href='http://eapr-1/@3@2002@4@SPORT@5@4X4@6@4.7@' target='_blank'></a>
Offline Profile Quote Post Goto Top

E.J.
Member Avatar
Advanced senior member
[ *  *  *  *  *  * ]
i can understand that. my wife has gone back to school and that means $$$$!!!!!!
Plus were expecting our first child and that means more $
Poor little Dakota is feeling neglected.
Posted ImagePosted Image
Offline Profile Quote Post Goto Top

Alta Boy
Member Avatar
Quad Squad site owner

I wasn't aware of this before but there were changes from one year to the next on the 4.7's IAT sensor. At best it will cost you $15 for a new sensor compared to a .50 cent pipe plug for mine.
Peter

Posted Image
Sully..............................................The 4x4
