Westwood Lawn Mower
Topic Started: Jun 26 2010, 01:27 AM (420 Views)
gazz
Member Avatar
Here to stay
[ *  *  *  * ]
I decided I needed some mental nutcase project to keep me busy, so welcome to my lawnmower!

Having had a mild interest in lawn mower racing after seeing it at my college a few years ago Ive always fancied building one for myself!.

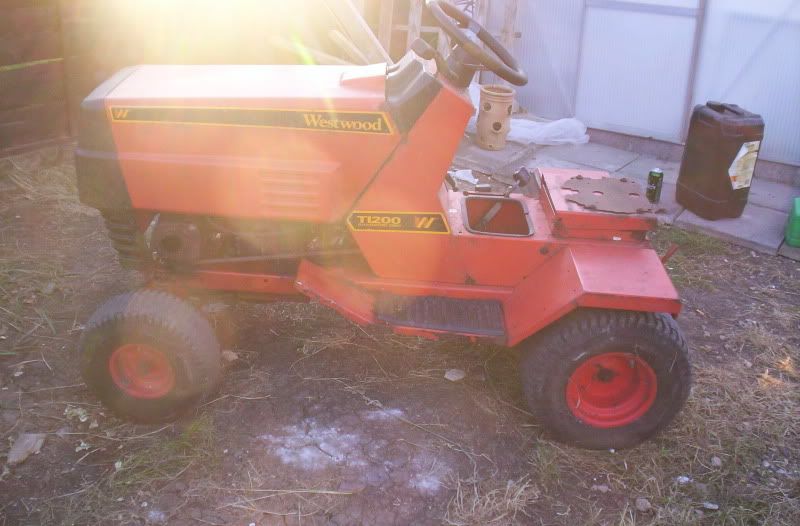

The donar: westood 12hp ride on mower.

Posted Image

Posted Image

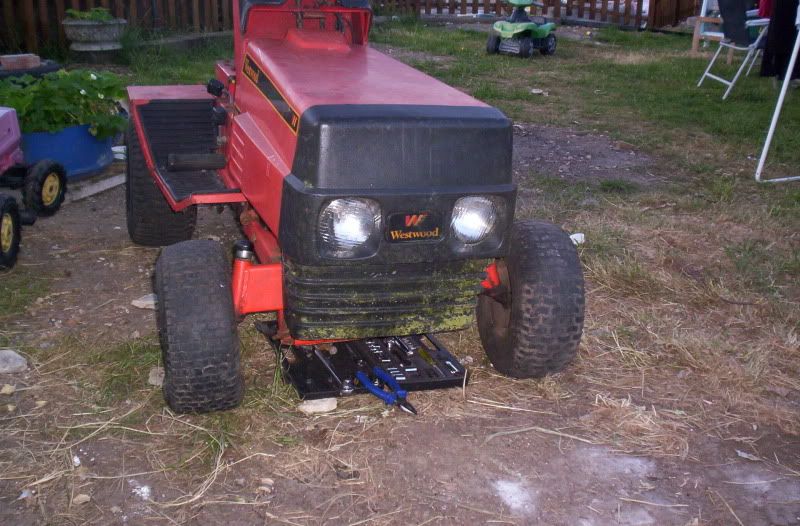

First job is to sort the chassis, so the front axle has been removed and new mounts fabricated to raise it up 3 inches (obviously lowering the front) The bonnet was then reposition to give a lower stance!

Posted Image

Posted Image

This has left the part that holds the controls and steering wheel rather high.

Posted Image


I have now modified it so the tin work finishes level with the bonnet (got too dark for pics but will add tomorrow)

Now most of you will probably be thinking how dull a 12hp mower is going to be to drive and I couldnt agree more, hence my next aquisition (sadly photo's will have to wait for tomorrow)

I have a complete accident damaged Yamaha fzr600r motorbike, running 90bhp and capapble of 1/4 miles in under 11 seconds, now that should make for a quick mower!

Posted Image
Offline Profile Quote Post Goto Top

Benny ITR
No Avatar
Project HELLAFLUSH Is Here
[ *  *  *  *  * ]
Awesome! Will Keep On This Thread!
[GK-customfield]Real Name[customfield-GK]Posted Image
Offline Profile Quote Post Goto Top

gazz
Member Avatar
Here to stay
[ *  *  *  * ]

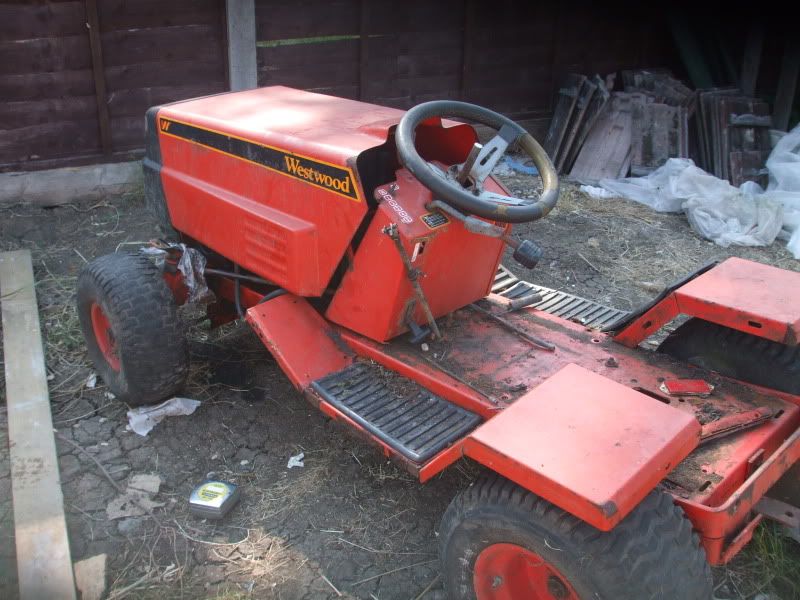

few more pics, modified the rest of the tin work, need to plate behind the steering wheel to fill the gap, this will house rev counter and warning dials.

Posted Image

Posted Image

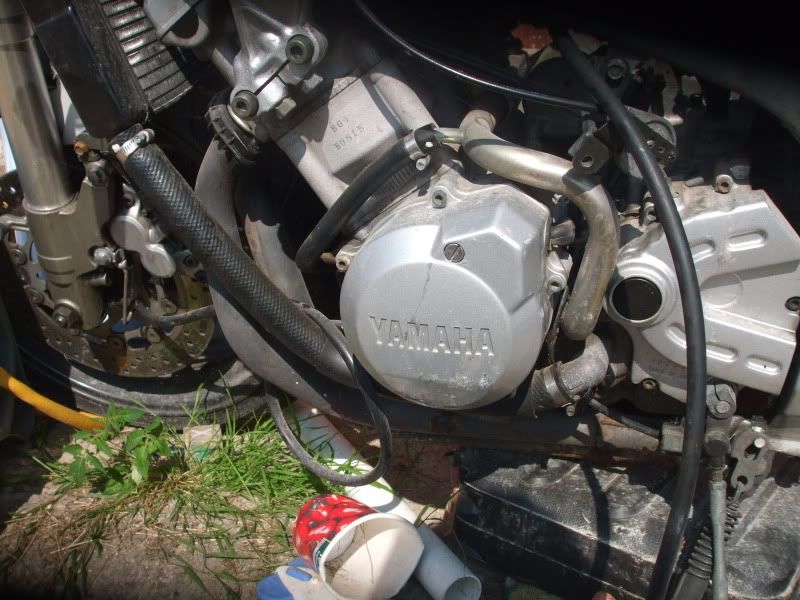

Got the bike running, sounds sweet as a nut!!

Posted Image

Posted Image

Next job is to get both of the engines out and start fabricating the mounts.

Posted Image
Offline Profile Quote Post Goto Top

Ian
No Avatar
Part of team impreza
[ *  *  *  *  * ]
your a nutcase
im not lazy im just chilled
Offline Profile Quote Post Goto Top

MARC MOSS
No Avatar
Doesn't have a home to go to!
[ *  *  *  *  * ]
I think that puttin that engine in a lawnmower is the funniest silliest and most brilliant idea I have seen this year,my brother buys new quad bikes and does exactly the same thing but for road use only!!!

You are mental lol

cool thread mate I hope u have a tow bar cause your gonna have to bring it to one of our meets when it's done :lol:
Posted Image[GK-customfield]Errrr marc moss[customfield-GK]
Offline Profile Quote Post Goto Top

gazz
Member Avatar
Here to stay
[ *  *  *  * ]
Its something that Ive always wanted to do, hopefully it will be something to remember.

Posted Image
Offline Profile Quote Post Goto Top

MARC MOSS
No Avatar
Doesn't have a home to go to!
[ *  *  *  *  * ]
You could bring it to meets and cut the grass so our stand looks even better :D

Posted Image[GK-customfield]Errrr marc moss[customfield-GK]
Offline Profile Quote Post Goto Top

gazz
Member Avatar
Here to stay
[ *  *  *  * ]
unfortunately it will no longer be cuting grass!

Posted Image
Offline Profile Quote Post Goto Top

paullen
Member Avatar
Paul Lennox
[ *  *  *  *  * ]
gazz
Jun 26 2010, 07:12 PM
unfortunately it will no longer be cuting grass!

Damn I was hoping to borrow it and get my mowing jobs done in no time!

Awesome project!
Posted Image
Gone is the 200, New project...1987 L200
www.lennoxservices.co.uk
Offline Profile Quote Post Goto Top

Argie
No Avatar
Doesn't have a home to go to!
[ *  *  *  *  * ]
he he nice project, mucho fun to be had :drive:

[GK-customfield]Paul[customfield-GK]Posted Image needs a Turbo!
Offline Profile Quote Post Goto Top

rob99
Member Avatar
Dead rising
[ *  *  *  *  * ]
This is PImp My Ride material! You should see if you can get Tim Westwood to sponsor you!

Love it mate, should be a lot of fun!!
Everyone you meet is fighting some kind of battle.
Peter David Edwards. 15/10/1947 - 26/05/2008. R.I.P.
Offline Profile Quote Post Goto Top

gazz
Member Avatar
Here to stay
[ *  *  *  * ]
I now have the kart chassis of which I will be using the chain drive rear axle.

Posted Image

Posted Image

Posted Image
Offline Profile Quote Post Goto Top

gazz
Member Avatar
Here to stay
[ *  *  *  * ]
Little bit more progress!

Completely stripped the mower down to its chassis, sold the engine so a few quid to go back into it!

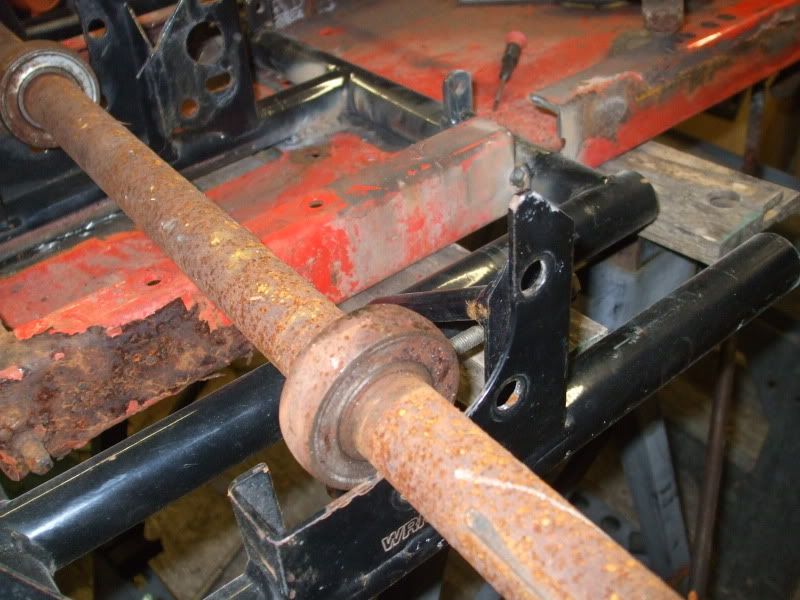

Have now cut the rear end off the kart and have fitted it into the mower chassis, tacked in place but ran out of mig wire!

Now I need to buy the parts to fit onto the axle (bearings and carriers, sprocket and disk carriers and hubs) once this is done I can fit the axle and get my alignment to fit the engine mounts for the bike engine.

Posted Image

Posted Image

Posted Image

Thats all for now!

Posted Image
Offline Profile Quote Post Goto Top

rob2.2
No Avatar
Doesn't have a home to go to!
[ *  *  *  *  * ]
this is ace, you going after the world record?
on track at japfest next year?
[GK-customfield]Rob[customfield-GK]Posted Image
Offline Profile Quote Post Goto Top

gazz
Member Avatar
Here to stay
[ *  *  *  * ]
to be honest I'm not entirely certain how driveable it will actually be!

Posted Image
Offline Profile Quote Post Goto Top
