| Knowlegeable People Please Advise | |
|---|---|
| Tweet Topic Started: Jul 26 2008, 09:41 PM (333 Views) | |
| Rossyboy99 | Jul 26 2008, 09:41 PM Post #1 |
|
Unregistered
|

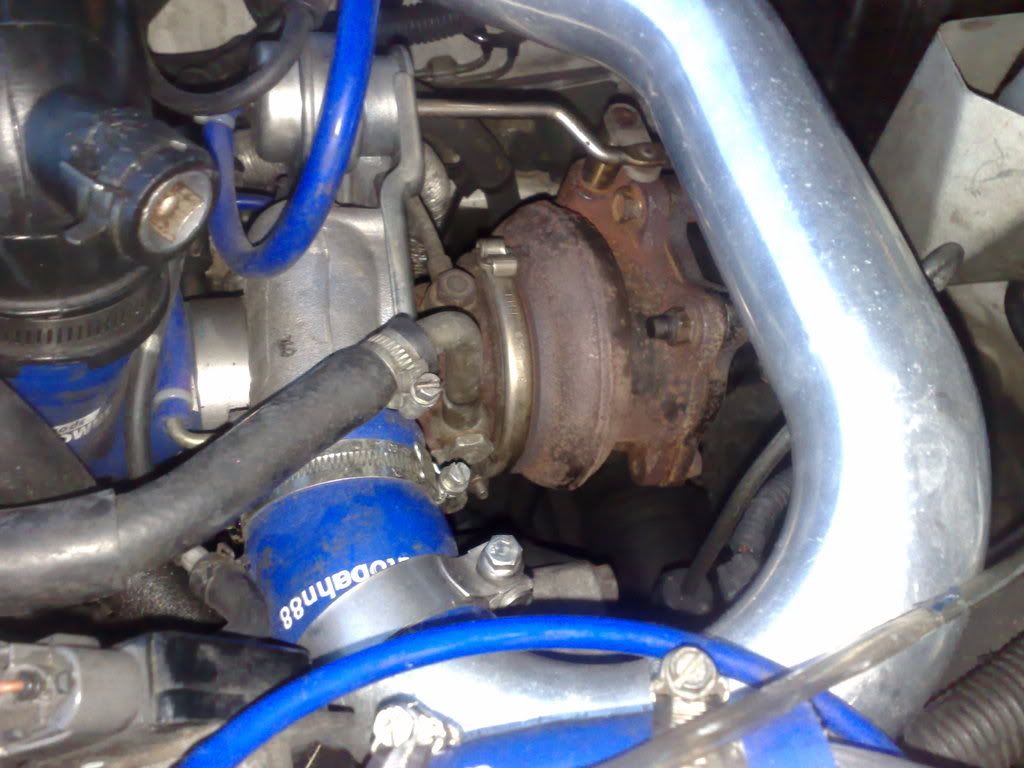

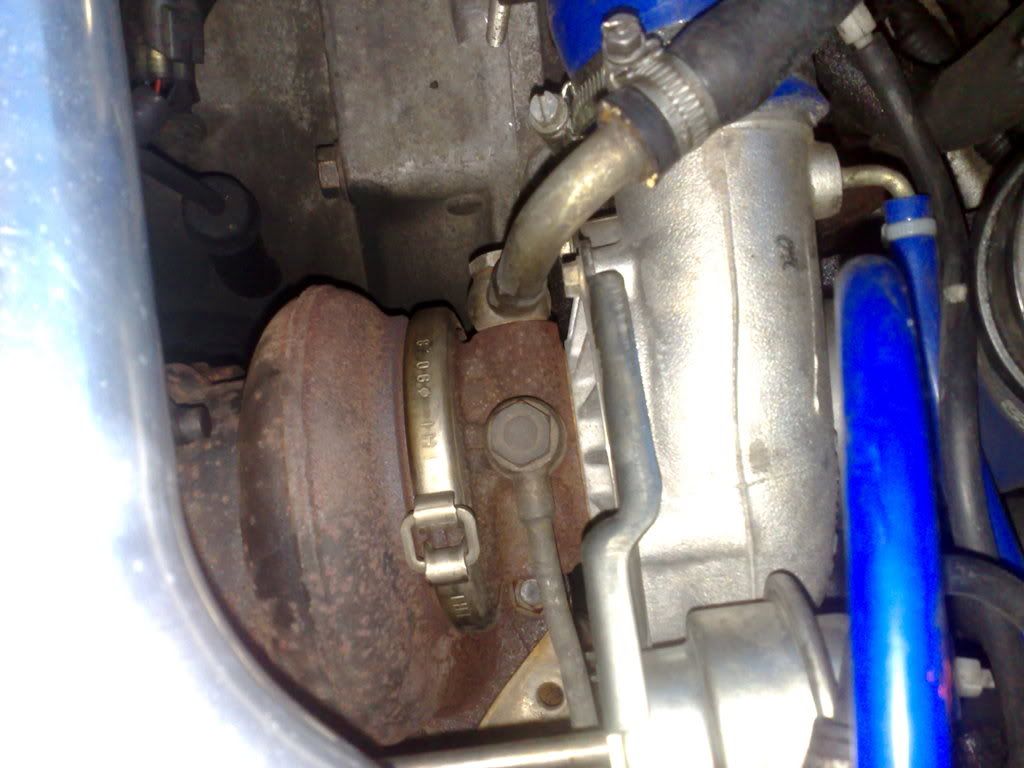

ok this is the scoob short vid of car running, can anyone identify the turbo?: i know not best pics etc and does it sound ok obviously camera phone quality vid. http://www.youtube.com/my_videos# ![]() ![]() ![]() |
|
|
| rob99 | Jul 26 2008, 10:29 PM Post #2 |
|
Dead rising
![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
Your video link isn't working ross.
|
|
Everyone you meet is fighting some kind of battle. Peter David Edwards. 15/10/1947 - 26/05/2008. R.I.P. | |
![]() |
|
| Rossyboy99 | Jul 26 2008, 11:15 PM Post #3 |
|
Unregistered
|
um ok biut stuck got no idea how to get it working added it to my you tube vids, i can click on link and it works but not sure how to make it work for other people? think this is it http://www.youtube.com/watch?v=6uE4AFWeuOI |
|
|
| myblackwrx | Jul 27 2008, 03:06 AM Post #4 |
Doesn't have a home to go to!
![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
You can check the front of the compressor housing as it should have some ID marks on it. |
| [GK-customfield]Paul[customfield-GK] | |
![]() |
|
| NeoMagic | Jul 27 2008, 04:28 AM Post #5 |
|
Here to stay
![]() ![]() ![]() ![]() ![]() ![]()
|
Looks standard, the exhaust housing is tiny. |
![]() | |
![]() |
|
| RA Jay | Jul 27 2008, 08:05 AM Post #6 |
4 Have Gone But Never Forgotten.
![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
Its not a TD05 because a piece of 90degree samco hose has been used to turn it from FE to TE i expect it is what the guy says it is....a VF34. |
|
1995 WRX - 318bhp/300ftlb - SOLD - 2005 2001 WRX Bugeye - 235bhp/230ftlb - SOLD - 2007 1996 WRX Type RA - 282bhp/285ftlb - SOLD - 2008 1997 STI Type RA - 350bhp/320ftlb - SOLD - 2009 1991 Nissan Pulsar GTiR - 286bhp/280ftlb - SOLD - 2009 | |
![]() |
|
| LegacyTurbo | Jul 27 2008, 02:20 PM Post #7 |
y0
![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
well its deffo an IHI turbo, because of the compressor housing is clamped on instead of circlipped. Also the exhaust housing doesnt look tiny, not that it matters. |
|
[GK-customfield]Lewis[customfield-GK] Starlet GT 1.3 forged engine, tdo4 turbo @ 1.25bar = 252bhp = SOLD ![]() EDIT: Charade GTxx 993cc three cylinder turbo, 173bhp @ 1.4bar (should hit 200bhp with a larger throttle body, removing stupid high lift cams and a bit more boost) | |
![]() |
|
| craigwrx277 | Jul 27 2008, 07:42 PM Post #8 |
Here to stay
![]() ![]() ![]() ![]() ![]() ![]()
|
i dunno lewis i quickly checked a spare td05 and it had the same band holding it together. but had the 90 degree bend on the inlet housing didnt they do a td04 with a straight part with no 90 elbow on it? |
![]() |
|
| RA Jay | Jul 27 2008, 11:20 PM Post #9 |
4 Have Gone But Never Forgotten.
![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
Yup.. as fitted to later UK cars. |
|
1995 WRX - 318bhp/300ftlb - SOLD - 2005 2001 WRX Bugeye - 235bhp/230ftlb - SOLD - 2007 1996 WRX Type RA - 282bhp/285ftlb - SOLD - 2008 1997 STI Type RA - 350bhp/320ftlb - SOLD - 2009 1991 Nissan Pulsar GTiR - 286bhp/280ftlb - SOLD - 2009 | |
![]() |
|
| RA Jay | Jul 27 2008, 11:23 PM Post #10 |
4 Have Gone But Never Forgotten.
![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
Ive also just noticed that the actuator arm is not straight and adjustable like it is in the TD series. |
|
1995 WRX - 318bhp/300ftlb - SOLD - 2005 2001 WRX Bugeye - 235bhp/230ftlb - SOLD - 2007 1996 WRX Type RA - 282bhp/285ftlb - SOLD - 2008 1997 STI Type RA - 350bhp/320ftlb - SOLD - 2009 1991 Nissan Pulsar GTiR - 286bhp/280ftlb - SOLD - 2009 | |
![]() |
|
| Rossyboy99 | Jul 28 2008, 03:48 AM Post #11 |
|
Unregistered
|
td series? Ok i'm a bit lost the guy says its the vf34 i'll have a good look at it tomorrow and check marking's |
|
|
| myblackwrx | Jul 28 2008, 09:00 AM Post #12 |
Doesn't have a home to go to!
![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
Subaru used 2 makes of turbos in the numerous model specs as standard. Mitsubishi TD series turbo and IHI (Ishikawajima Harima Heavy Industries) series turbo. The markings should be on the shiney part of the turbo around the entrance to the turbo. |
| [GK-customfield]Paul[customfield-GK] | |
![]() |
|
| LegacyTurbo | Jul 28 2008, 10:20 AM Post #13 |
y0
![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
No craig, that band in the middle holds the turbo core to the exhaust housing, i mean the alloy compressor housing is clamped on with little bolts and plates, the TD turbos have a big circlip holding it in place. So its Deffo an IHI turbo, just gotta find out which one. |
|
[GK-customfield]Lewis[customfield-GK] Starlet GT 1.3 forged engine, tdo4 turbo @ 1.25bar = 252bhp = SOLD ![]() EDIT: Charade GTxx 993cc three cylinder turbo, 173bhp @ 1.4bar (should hit 200bhp with a larger throttle body, removing stupid high lift cams and a bit more boost) | |
![]() |
|
| Rossyboy99 | Jul 28 2008, 04:10 PM Post #14 |
|
Unregistered
|
yeah has ihi on it what else am i looking for? |
|
|
| myblackwrx | Jul 28 2008, 04:32 PM Post #15 |
Doesn't have a home to go to!
![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
There should be a plaque identifying it on the front housing |
| [GK-customfield]Paul[customfield-GK] | |
![]() |
|
| LegacyTurbo | Jul 28 2008, 06:32 PM Post #16 |
y0
![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
directly under the turbo inlet. |
|
[GK-customfield]Lewis[customfield-GK] Starlet GT 1.3 forged engine, tdo4 turbo @ 1.25bar = 252bhp = SOLD ![]() EDIT: Charade GTxx 993cc three cylinder turbo, 173bhp @ 1.4bar (should hit 200bhp with a larger throttle body, removing stupid high lift cams and a bit more boost) | |
![]() |
|
| craigwrx277 | Jul 28 2008, 06:34 PM Post #17 |
Here to stay
![]() ![]() ![]() ![]() ![]() ![]()
|
i get what mean my bad |
![]() |
|
| ringo | Jul 30 2008, 11:49 AM Post #18 |
Part of the Triton team.
![]() ![]() ![]() ![]()
|
The exhaust clamp does have IHI stamped on it if you look at the first picture. You will need to look at the model number as everyone else is saying. |
![]() |
|
