| Boost Gauge Fitting; Help please | |
|---|---|
| Tweet Topic Started: May 29 2008, 01:19 PM (247 Views) | |
| LJ_UK | May 29 2008, 01:19 PM Post #1 |
|
Unregistered
|
Just outseide fitting my bosst gauge in the new scoob and was wondering about the wiring :rolleyes: got a red, black and orange wires, now it says i need to connect the orange one to the head lights, black to ground and red to ignition switch? but do i need to connect it to the ignition switch for it to work? or will it work with just the orange n black connected? also which hose do i connect the t-pipe to for the boost? cars a 2000 reg impreza uk spec.
|
|
|
| LJ_UK | May 29 2008, 03:57 PM Post #2 |
|
Unregistered
|
never mind peeps i got it done in the end will get some pics up later
|
|
|
| LJ_UK | May 29 2008, 06:25 PM Post #3 |
|
Unregistered
|

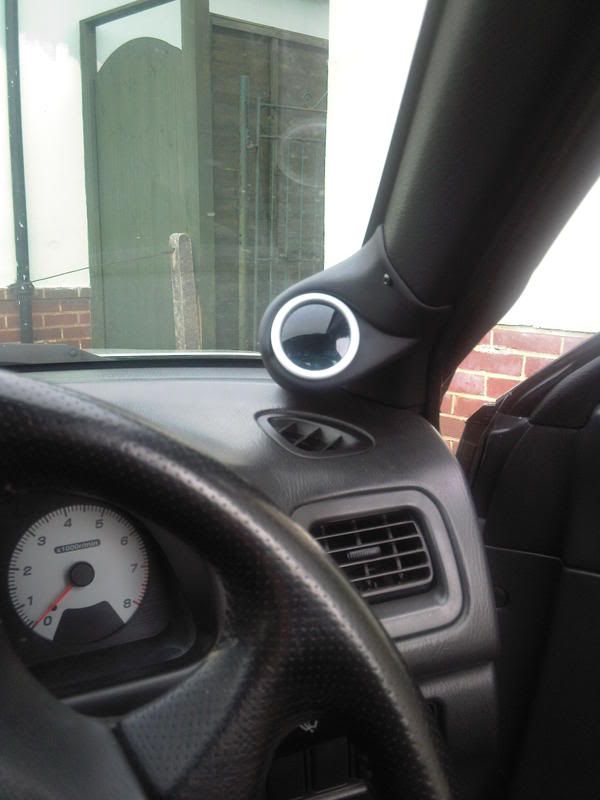

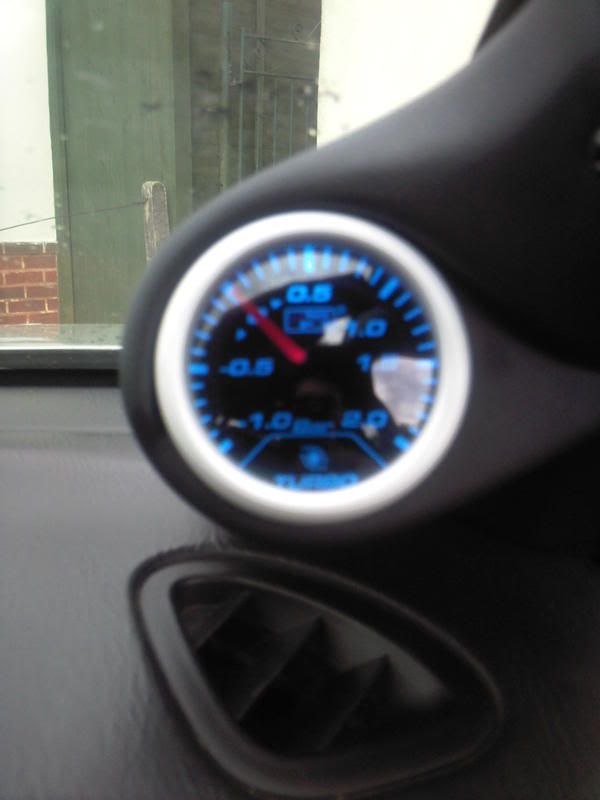

Ok here's the pics ![]()
|
|
|
| rob99 | May 29 2008, 06:28 PM Post #4 |
|
Dead rising
![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
looks well smart Luke. post up wiring for others
|
|
Everyone you meet is fighting some kind of battle. Peter David Edwards. 15/10/1947 - 26/05/2008. R.I.P. | |
![]() |
|
| LJ_UK | May 29 2008, 06:32 PM Post #5 |
|
Unregistered
|
yup, wired both the red and orange wires to the positive headlight wire and then the black wire to the nearest earth on the body. I ran the vacuum hose and wires into the engine bay through a grommit found just above the clutch pedal. Its quite easy to do when you know how
|
|
|
| Andy | May 29 2008, 07:02 PM Post #6 |
|
Unregistered
|
does it work when you start the engine without the headlights? as it sounds like it will only work when they are turned on orange is ment to go to the illumination so when the lights are on it lights up and the red to a 12v ignition supply so when the ignition is on it activates the gauge, although the stealth gauges dont really need the orange wire as they come on without it being connected.looks good though, same gauges i have
|
|
|
| LJ_UK | May 29 2008, 07:26 PM Post #7 |
|
Unregistered
|
the gauge works with or without the lights on, its just illuminated when the lights are on :rolleyes: |
|
|
| Andy | May 29 2008, 07:55 PM Post #8 |
|
Unregistered
|
so wire both to the 12v supply not the headlight illumination and it'll work all the time, thats what mines on
|
|
|
| LJ_UK | May 29 2008, 08:14 PM Post #9 |
|
Unregistered
|
but it doesnt need to be illuminated all the time? only at night when its dark :rolleyes: |
|
|
| RA Jay | May 29 2008, 08:20 PM Post #10 |
4 Have Gone But Never Forgotten.
![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
Is it a mechanical gauge or electrical? |
|
1995 WRX - 318bhp/300ftlb - SOLD - 2005 2001 WRX Bugeye - 235bhp/230ftlb - SOLD - 2007 1996 WRX Type RA - 282bhp/285ftlb - SOLD - 2008 1997 STI Type RA - 350bhp/320ftlb - SOLD - 2009 1991 Nissan Pulsar GTiR - 286bhp/280ftlb - SOLD - 2009 | |
![]() |
|
| LJ_UK | May 29 2008, 08:22 PM Post #11 |
|
Unregistered
|
well it works when the wires arn't connected so mechanical i guess lol |
|
|
| RA Jay | May 29 2008, 08:25 PM Post #12 |
4 Have Gone But Never Forgotten.
![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
I just wondered why it had a red and an orange wire |
|
1995 WRX - 318bhp/300ftlb - SOLD - 2005 2001 WRX Bugeye - 235bhp/230ftlb - SOLD - 2007 1996 WRX Type RA - 282bhp/285ftlb - SOLD - 2008 1997 STI Type RA - 350bhp/320ftlb - SOLD - 2009 1991 Nissan Pulsar GTiR - 286bhp/280ftlb - SOLD - 2009 | |
![]() |
|
| Loopyleesa | May 29 2008, 08:26 PM Post #13 |
Loopleesa@hotmail.com
![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
Well done Luke, clever boy
|
[GK-customfield]Leesa Sutton[customfield-GK]
| |
![]() |
|
| LJ_UK | May 29 2008, 08:45 PM Post #14 |
|
Unregistered
|
not sure Jay, says orange one is for lights 12v and red for ignition + works either way so im happy
|
|
|
| Andy | May 29 2008, 09:27 PM Post #15 |
|
Unregistered
|
its like i said luke, red for the 12v power supply, orange for the illumination = gauge lights up when you turn the headlights on, goes dark when you turn the lights off. all gauges by autogauge are the same hence they give you 1 instruction sheet which covers every type of gauge available in that series. is yours not dark when the lights are turned off then? mine is connected as per the instruction and the orange wire isn't needed as its illuminated all the time until you turn off the ignition then its blank. |
|
|
| LJ_UK | May 30 2008, 03:02 AM Post #16 |
|
Unregistered
|
it is but still visable, i did look at connecting it to the ignition but i couldnt even see the back of the ignition to get at the wires even with taking the surrounding covers off so gave up lol |
|
|
